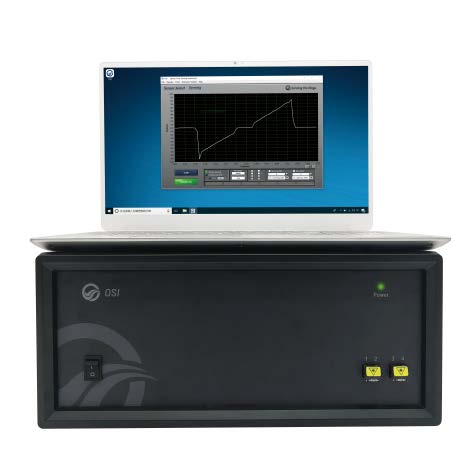

OSI-D Dynamic Distributed Fiber Optic Sensing System
OSI-D is based on Optical Frequency Domain Reflectometry (OFDR) technology, used for temperature and strain distributed measurements, with a spatial resolution of up to 0.64mm. Through optimized algorithms, OFDR distributed fiber optic sensing technology achieves dynamic demodulation, with a sampling rate of up to 120Hz, suitable for real-time monitoring applications. OSI-D utilizes conventional single-mode optical fibers as sensors and is compatible with high-density weakly reflective fiber Bragg grating arrays, enabling the simultaneous measurement of thousands to tens of thousands of sensing points on a single fiber. With a 3+1 measurement mode, OSI-D meets diverse customer needs, providing shape sensing capabilities and supporting comprehensive customization.
Key Features
Ultra-high measurement accuracy and spatial resolution
Measurement lengths: 5m, 10m, 20m
Fast demodulation, sampling rate up to 120Hz
3+1 measurement modes (3 standard modes and 1 custom mode)

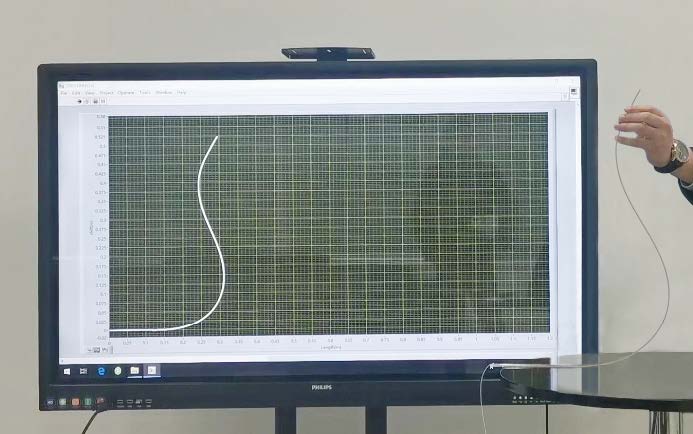

Shape sensing capability
Self-calibration, no manual intervention required, excellent stability
Strong sensor compatibility
Option for a portable version, convenient for field testing
Support for customization of both hardware and software, optimizing parameters for specific customer applications, and tailor-made software.
Application
· Civil engineering structural health monitoring
· Composite material fatigue detection
· Strain and temperature detection in automotive structures

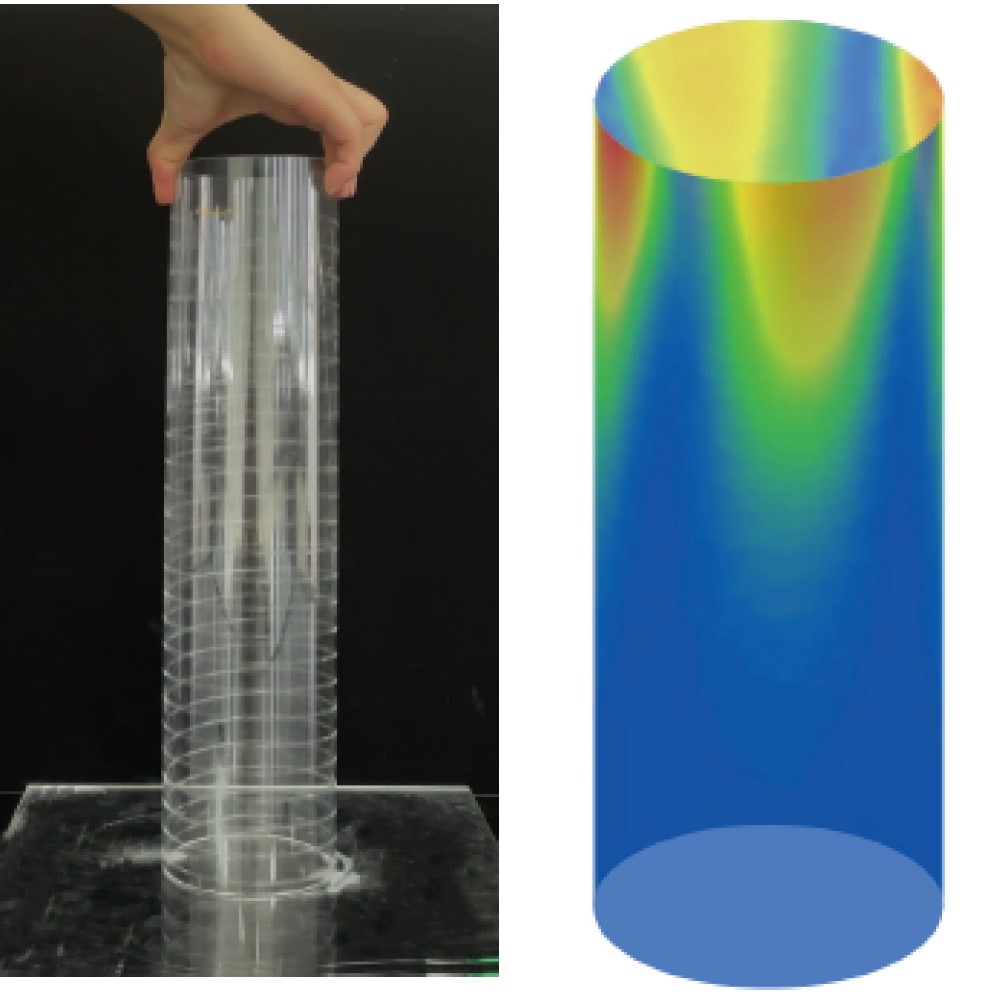

· Strain field and temperature field reconstruction
Specification
Dynamic Distributed Fiber Optic Sensing System OSI-D 主要参数 Main Parameters | |||||
传感长度Sensing length① | 20 | Meter | |||
引纤长度Lead fiber length② | 20 (50 or 100) | Meter | |||
空间分辨率Spatial resolution① | 0.64 to 10.24 | mm | |||
传感器Sensor③ | All kinds of fiber optic | - | |||
3+1测量模式 3+1 Measurement Modes④ | 模式一 Mode 1 | 模式二 Mode 2 | 模式三 Mode 3 | 用户自定义 Custom Mode | - |
传感长度Sensing length | 5 | 10 | 20 | 0 to 20 | Meter |
采样率 Sampling Rate⑤ | 120 | 100 | 50 | 0 to 120 | Hz |
应变测量精度Strain measurement accuracy | ±4.0 | ±4.0 | ±4.0 | ±1.0 to ±8.0 | με |
应变测量范围Strain measurement range | ±12000 | ±12000 | ±12000 | ±12000 | με |
温度测量精度Temperature measurement accuracy | ±0.4 | ±0.4 | ±0.4 | ±0.1 to ±0.8 | ℃ |
温度测量范围Temperature measurement range | -200 to 1200 | -200 to 1200 | -200 to 1200 | -200 to 1200 | ℃ |
输入电压Input voltage | AC 220/110V；DC 12V | - | |||
功率Power | 60 | W | |||
通讯接口Communication interface | USB | - | |||
光纤接口Fiber interface | SC/APC | - | |||
尺寸(标准机箱) Dimensions (standard chassis) | D 330 * W 350 * H 160 | mm | |||
重量(标准机箱) Weight (standard chassis) | 7.5 | kg | |||
尺寸(便携机箱) Dimensions (portable chassis) | D 290 * W 196 * H 165 | mm | |||
重量(便携机箱) Weight (portable chassis) | 4.75 | kg | |||
储藏温度Storage temperature | 0 to 50 | ℃ | |||
工作温度Operating temperature | 10 to 40 | ℃ | |||
工作湿度Operating humidity | < 90 | %RH | |||
Note:
① The maximum measurement length for a single channel is 20m, and each measurement mode has corresponding configuration parameters. Spatial resolution ranges from 0.64 to 10.24mm with multiple options.
② Standard pigtail length is 20m, customizable to 50m or 100m.
③ The sensor supports various types of optical fibers, and it is recommended to use single-mode fibers or high-density weakly reflective fiber Bragg grating arrays.
④ 3+1 measurement modes are available, and users can switch between them on the software interface. Each mode can be configured for sensor length and spatial resolution, obtaining the corresponding sampling rate. User-defined modes require a separate purchase.
⑤ The sampling rate is related to the number of sensing points. The sampling rate in the table is obtained under the longest sensing distance and a spatial resolution of 10.24mm for that mode.
