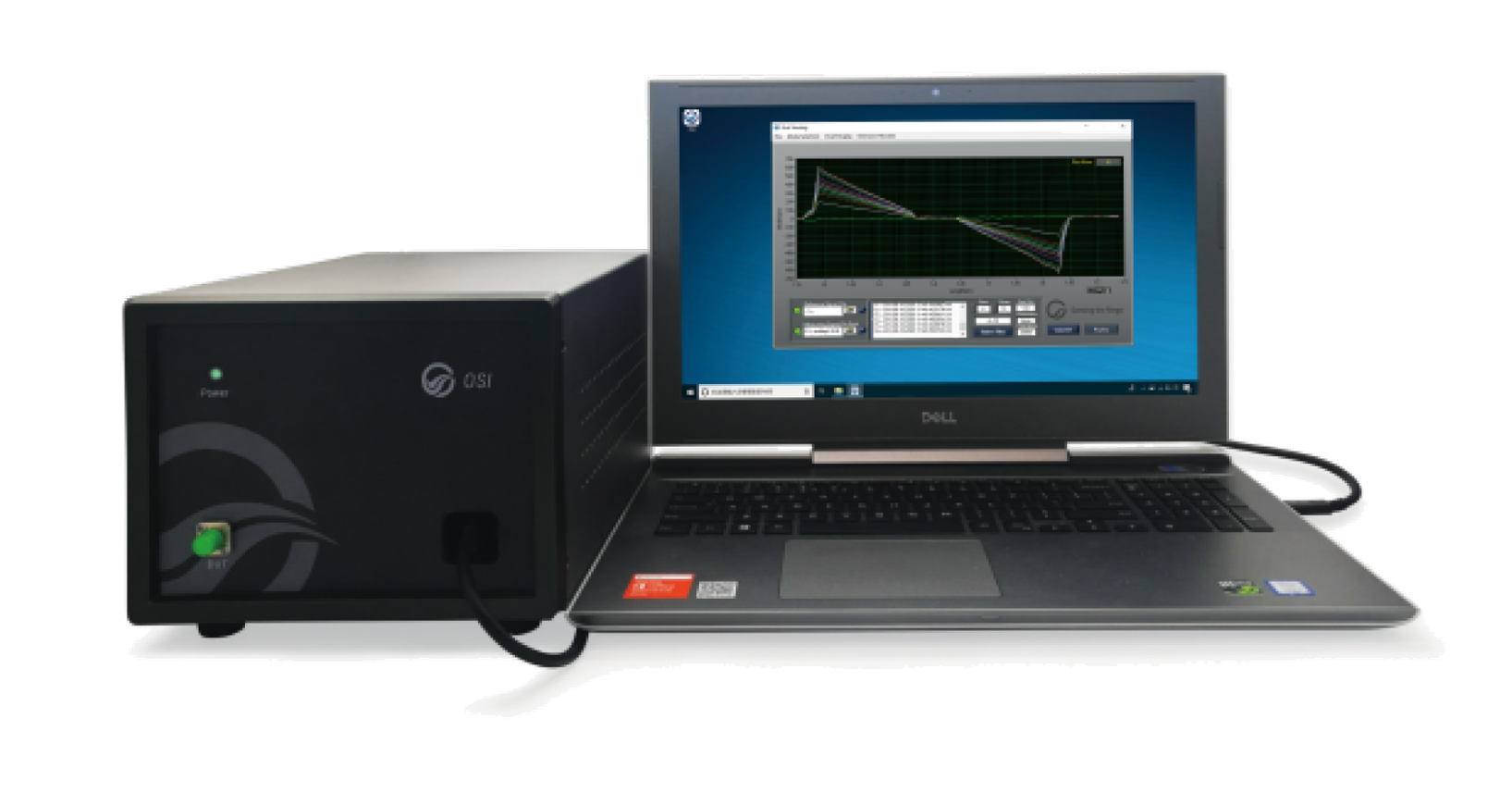

OSI-S High-Precision Distributed Fiber Optic Sensing System
OSI-S is an ultra-high-precision distributed fiber optic sensing device. Its principle is based on Optical Frequency Domain Reflectometry (OFDR) and is used for temperature and strain distributed measurements with a spatial resolution of up to 1mm. The accuracy of temperature and strain measurements can reach up to ±0.1℃ and ±1.0με, respectively. The system utilizes conventional single-mode optical fibers as sensors and is compatible with high-density weakly reflective fiber Bragg grating arrays. It can simultaneously measure thousands to tens of thousands of sensing points on a single fiber, making it widely applicable in the fields of short-range, high-resolution, and high-precision temperature and strain measurements.
Key Features
· Ultra-high measurement accuracy and spatial resolution
· Strong sensor compatibility
· Equipped with shape sensing functionality
· Unique fiber break length compensation function
· Self-calibrating with excellent stability, requiring no manual intervention
· Option for a portable version, facilitating on-site testing
· Supports customization of both hardware and software, such as dynamic demodulation and multi-channel upgrades
· Customizable lead fiber length, such as a 1km lead fiber, for convenient long-distance measurements
Application

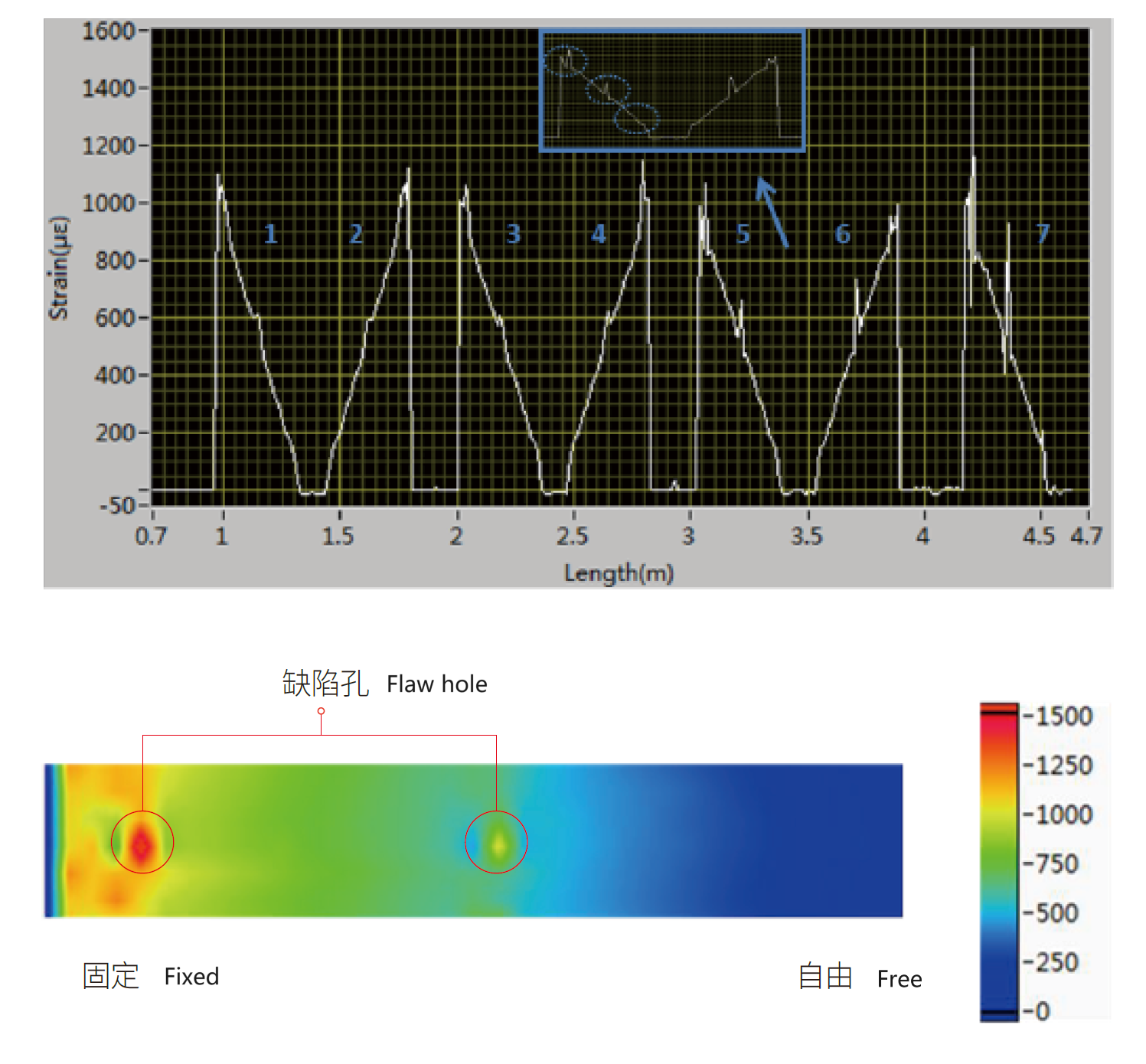

· Civil engineering structural health monitoring
· Composite material fatigue detection

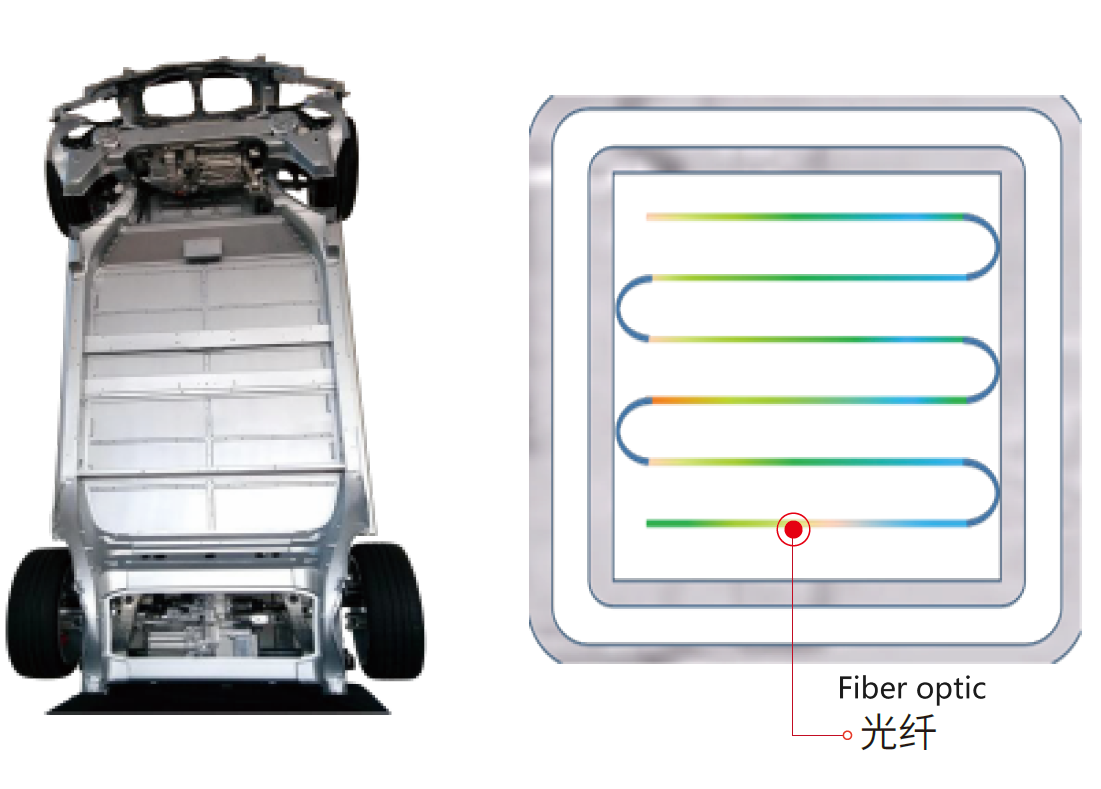

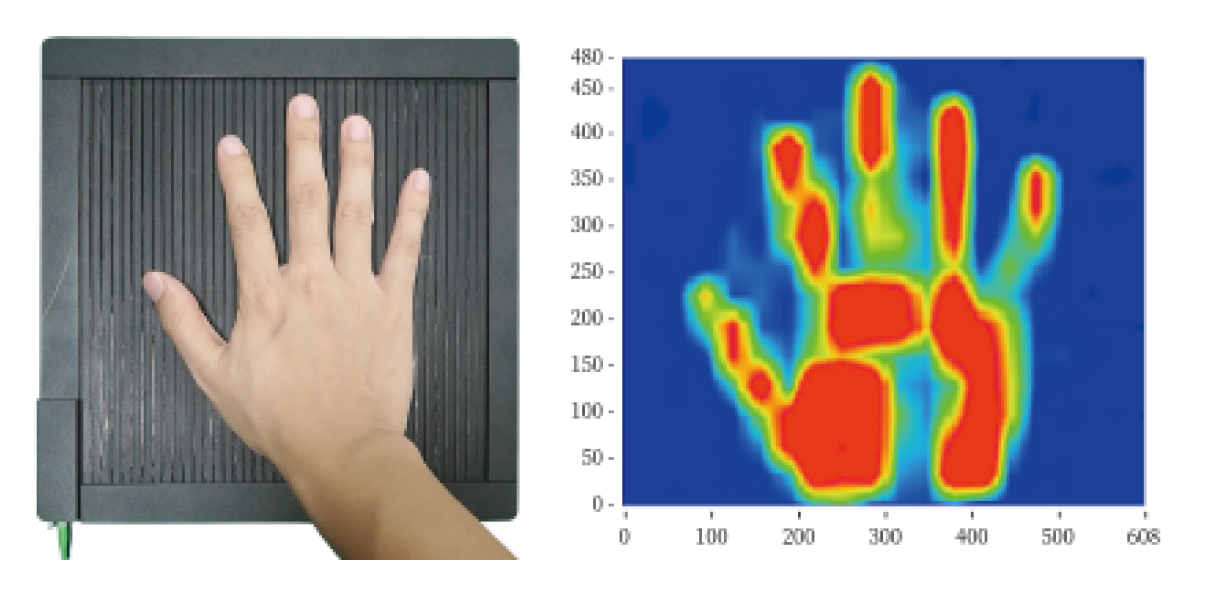

· Strain and temperature detection in automotive structures
· Strain field and temperature field reconstruction
Specification
High-Precision Distributed Fiber Optic Sensing OSI-S 主要参数 Main Parameters | |||
传感长度 Sensing length① | 50 | 100 | Meter |
引纤长度 Lead fiber length② | 0 to 1 | Km | |
最高空间分辨率 Max. spatial resolution③ | 1 | mm | |
传感器 Sensor④ | All kinds of fiber optic | - | |
应变测量精度 Strain measurement accuracy⑤ | ±1.0 | με | |
应变测量范围 Strain measurement range | ±12000 | με | |
温度测量精度 Temperature measurement accuracy⑤ | ±0.1 | ℃ | |
温度测量范围 Temperature measurement range⑥ | -200 to 1200 | ℃ | |
输入电压 Input voltage | AC 220/110V；DC 12V | - | |
功率 Power | 60 | W | |
通讯接口 Communication interface | USB | - | |
光纤接口 Fiber interface | FC/APC | - | |
尺寸(标准机箱) Dimensions (standard chassis) | D 330 * W 350 * H 160 | mm | |
重量(标准机箱) Weight (standard chassis) | 7.5 | kg | |
尺寸(便携机箱) Dimensions (portable chassis) | D 290 * W 196 * H 165 | mm | |
重量(便携机箱) Weight (portable chassis) | 4.75 | kg | |
储藏温度 Storage temperature | 0 to 50 | ℃ | |
工作温度 Operating temperature | 10 to 40 | ℃ | |
工作湿度 Operating humidity | < 90 | %RH | |
①Sensing length is customizable.
② Standard products come without a lead fiber length, but other lengths can be customized, such as 1km for remote measurements.
③ Spatial resolution is selectable in multiple levels ranging from 1 to 10mm. The spatial resolution of customized products can reach up to 0.64mm.
④ The sensor supports various types of optical fibers, and it is recommended to use single-mode fibers or high-density weakly reflective fiber Bragg grating arrays.
⑤ Measurement accuracy is achieved at a spatial resolution of 1cm.
⑥ The temperature measurement range depends on the type of sensing optical fiber. Acrylate-coated fibers are suitable for 0 to 100℃, polyimide-coated fibers for -50 to 300℃, and gold-coated fibers for -200 to 700℃.
